Looking for firmware programmer

The project is to design firmware for a custom board based on this MCU http://www.ti.com/product/CC3220
The board is still under development, so firmware will be tested using this dev board: http://www.ti.com/tool/CC3220SF-LAUNCHXL
(Not likely but I may ask you to design the board as well)
This MCU has built-in WiFi subsystem.
The board will have two communication interfaces:

  • it will run HTTP server accessible via WiFi.
  • it will talk to a number of devices connected to RS485 bus

The goal of the project is to receive commands via WiFi and send them to devices, then receive response from devices and send back via WiFi.

  • You should be able to connect the boards, minimal soldering may be required
  • You should have experience with MCU programming
  • Preferably you have experience developing Texas Instruments MCUs
  • You should have experience with JavaScript – not for the firmware but for the test page

Stage 1

I will send you all boards and parts

If you don’t have experience with TI, familiarize yourself with appropriate development environment

Familiarize yourself with basics of HTTP protocol

You build and run code samples provided by TI on the dev board

Stage 2

Depending on position of switch, board will run in either WiFi Access Point (AP) mode or as a client

When running as AP, board will create its own WiFi network and accept incoming connections, just like your WiFi router

When running as client, it will connect to a network that was previously configured and obtain IP on that network

Such configuration will happen via HTTP page

At all times the board will run as HTTP server and there will be config page http://x.x.x.x/config

This page will have a simple form with inputs for the WiFi network it has to connect to, and a save button

Once user selects a network and enters credentials, the board will handle the post, parse out the user inputs, save it in flash and connect to that network

Since config is saved in flash, it will be used in subsequent runs

The board will turn on/off one of the leds to indicate whether it is running as AP or client

The board will also support static files such as CSS styles and images, those will be used to style the form

Stage 3

The board will exchange data between WiFi client and devices on RS485 network

The board will accept incoming HTTP requests, body of the request will contain commands for all the devices on the network (see attachment and description below)

The board will parse the request and send/receive command to each individual device

All responses from all boards will be accumulated and sent back via HTTP response

This part of the system must be optimized for speed; I want to be able to exchange as many HTTP requests as possible

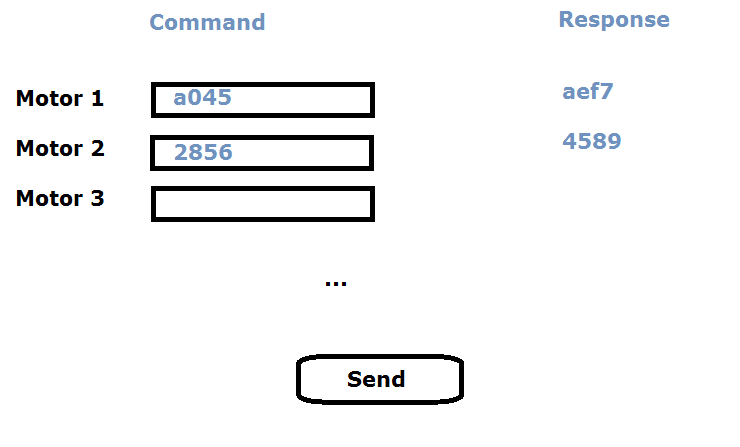

In addition to config page which is already implemented, add simple test page to test this communication. The page will be split in 2 halves. Left side will contain a list of textboxes to enter commands for devices. Right side will contain a list of corresponding textblocks to show devices’ responses. Ajax implementation required.

Stage 4

More pages for configuration and diagnostics will be added – will provide details later.

  • Code should be written in a way that allows easy extensions; for example each page should be organized as a single function or class or file; adding pages should be simple by following example
  • Communication serial communication with devices should be implemented using DMA and interrupts.

RS485 network organization

Number of devices on RS485 network is variable

Each device on the network has an ID; ID is one byte

Board also has ID, it is always 00

Devices and board exchange messages of variable length, maximum length is 6 bytes

ID of the target device (or board) always goes as first byte on every messages exchanged on the network

All devices are listening to the same line at the same time, they recognize message addressed to them by the first byte of the message

Devices recognize the end of the message by IDLE LINE interrupt.

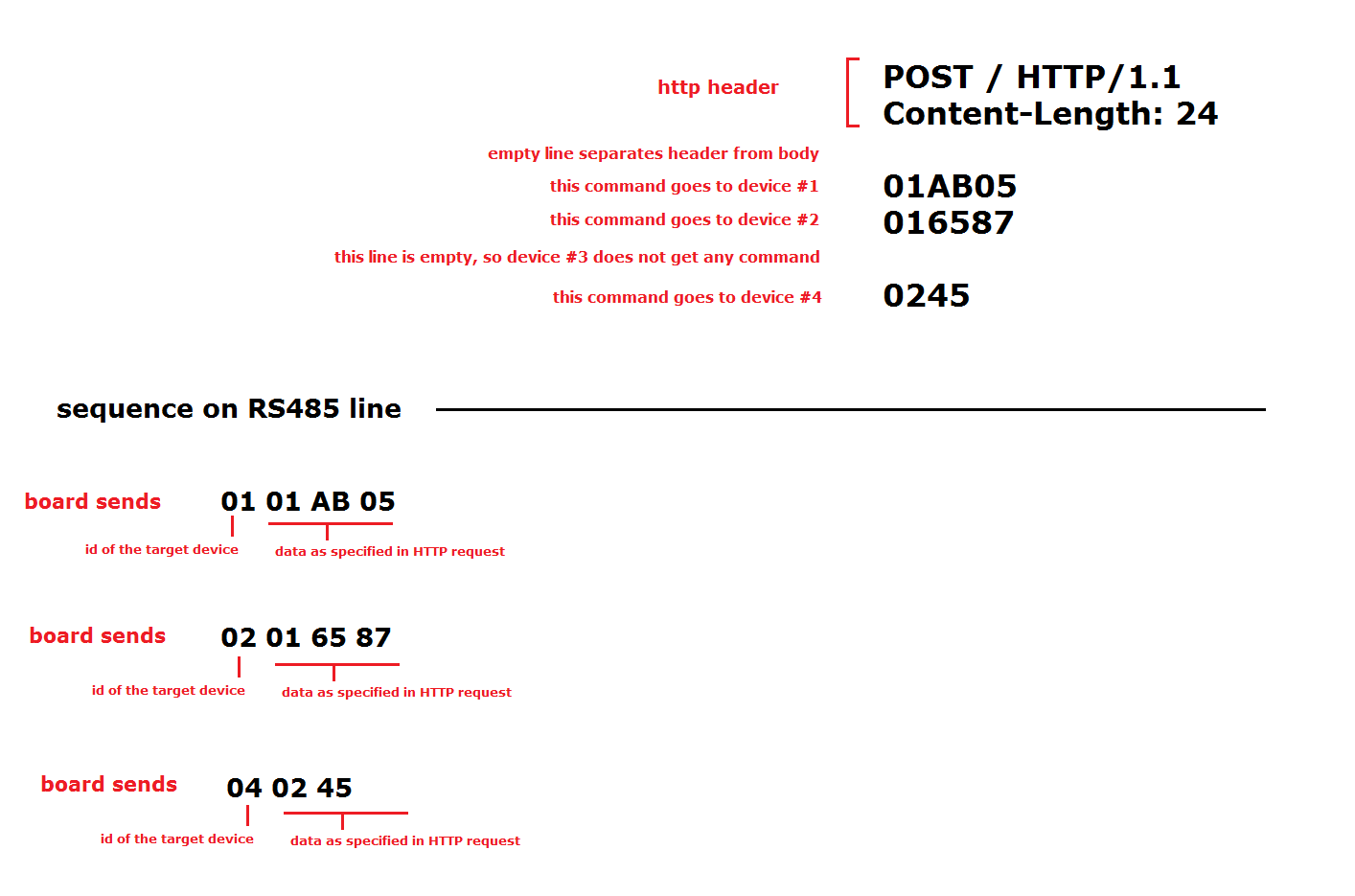

HTTP request format

HTTP body is textual, not binary

HTTP body consists of several lines

Each line contains a command that has to be sent to a device

First line is the command for device #1, second line is for device #2, etc.

Some lines can be empty, this means that communication with that device is not required

Each line contains sequence of bytes formatted as HEX

Because devices recognize binary, there must be a routine to parse sequence of HEX characters into sequence of bytes

Board will parse request line-by-line and for each line execute the following sequence

  • it will parse HEX into binary array
  • it will insert id of the target device into the binary array
  • it will start transmission using DMA and interrupts
  • on completed transmit it will switch into listening (again using DMA + interrupts)
  • it will be notified about the end of receive by Idle Line interrupt
  • once receive is completed it will check if destination is 00 (00 is the ID of the board)
  • it will convert binary array into array of HEX chars and add it to the output buffer

Once all the devices have been processed, the board will send HTTP response

Network structure HTTP sample Test page
